1D Thermofluids Software

Flownex® Simulation Environment


Flownex® Simulation Environment is a state-of-the-art engineering tool that enables the design and optimisation of fluid flow and heat transfer systems.

Using Flownex® software, engineers are able to meticulously examine the possible variations of thermofluidic systems, using the findings to design and optimise their systems for real world applications.

DOCAN are a trusted and approved sales partner for Flownex.

If you want a quick, efficient, straightforward, face-to-face sales process, go no further and talk to the DOCAN team.


What Flownex gives you

Flownex software is commonly used to simulate power conversion cycles, cooling equipment and flow distribution networks. The Flownex® Simulation Environment gives engineers the power to perform detailed integrated systems modeling at a swift pace without jeopardising their accuracy.

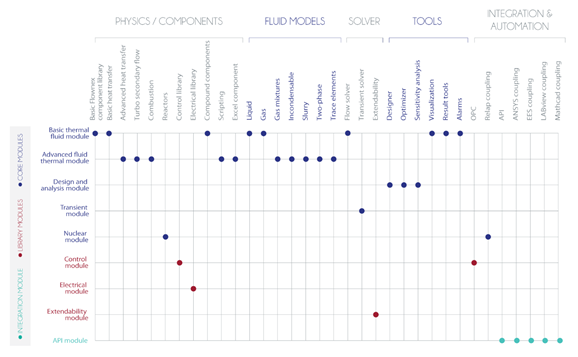

Users gain access to a conclusive library of:

  • Flow components
  • Full conjugate heat transfer
  • Mechanical components
  • Advanced fluid models and mixtures
GetImage (43)

All components are validated and verified, built on the foundations of fundamental thermal fluid physics and proven correlations. Flownex is developed in an ISO9001:2008 and NQA1 quality assurance system environment and is the only software of its kind to hold a nuclear accreditation.


How engineers can use Flownex

With access to the Flownex® Simulation Environment, engineers can evaluate a high number of system configurations and simulate multiple fluids in a single network. It also accounts for significant physical phenomena when modelling fluid systems.

Flownex offers the simulation of both analogue and digital control systems through an intuitive interface that has been under constant development for nearly 30 years. Over that time, engineers have been using Flownex to solve specific problems by using custom flow and heat transfer components, fluid models and tools.

With a seamless link between flow/heat transfer networks and integrated control systems we are able to improve design and operational parameters.

All of the above combines to vastly improve engineers’ workflow and productivity within a fluid power simulation environment.

flownex hvac icon

Flownex industry applications

Flownex software has a long and respected track record, and is regarded as industry-leading across a wide range of sector applications, including:

  • Nuclear
  • Aerospace
  • Automotive
  • Oil & Gas
  • Turbomachinery
  • H-VAC
  • Industrial Processes
  • Academic use

In a nutshell, all industrial sectors which deal with gas or liquid transportation in a plant.

FLOWNEX has many technical applications, including:

  • Fluid Flow
    Flownex® SE contains a large library of thermo-fluid components designed specifically for both steady state and dynamic system performance analysis and optimization.
  • Oil & Petrochemical
    Flownex® SE determines pressure drop [flow] and heat transfer [temperature] for the connected components of a complete system in steady state and transient, e.g. pumps or compressors
  • HVAC
    Flownex SE provides HVAC engineers with the ideal systems simulation tool to design and optimize integrated ducting systems, refrigeration cycles and control systems with both accuracy and speed.
  • Supercritical CO2
    Flownex® SE simultaneously solves mass, momentum and energy in conjunction with two-phase fluid properties for system models. This makes it ideal for modelling super critical CO2 cycles where key design parameters can be analyzed and optimized.
  • Turbomachinery
    Flownex SE is an industry leader system modelling tool for the design and analysis of turbomachinery systems, subsystems and auxiliaries.
  • Nuclear Small Modular Reactors
    Flownex SE enables system level modelling of Small Modular Reactor (SMR) nuclear plant fluid mechanics, heat transfer and neutronic response in both transient and steady state.

Related consultancy services

DOCAN’s consultancy services can assist in the design and engineering of pressure systems, pressure vessels and piping networks using Flownex® Simulation Environment. Through our technology transfer & training services, we also have the ability to help your team navigate and utilise the software in-house for future projects.

Read more about each service below.

Get started with Flownex

DOCAN is a registered Flownex channel partner, fully licensed to resell the Flownex® Simulation Environment software to engineers that are looking to add it to their suite.

As a Flownex channel partner, we offer training and guidance to customers in the United Kingdom and the United States. We support you in applying Flownex to your working environment and projects, to ensure that you can maximise the software and its capabilities.

Flownex training with DOCAN

Our team has many years of experience in the field of computer aided engineering, so our partnerships with world leading software houses extend beyond distribution and sales.

We can provide bespoke training courses to suit the customer requirements. In addition, we can combine consultancy and training to transfer the necessary technology and skills over time, allowing you to undertake the work yourselves and DOCAN to provide expert guidance and advice.
